Vallecas

3rd Year (Erasmus) urban design studio

Street Level View

Pedestrian axis between metro and shopping centre

Aerial View

Proposed completion of the Ensanche de Vallecas

Function and topologies

Isometric depicting buildings' functions, form and positioning

Street Profile

Section/Plan showing street zoning, building profiles and vegetation

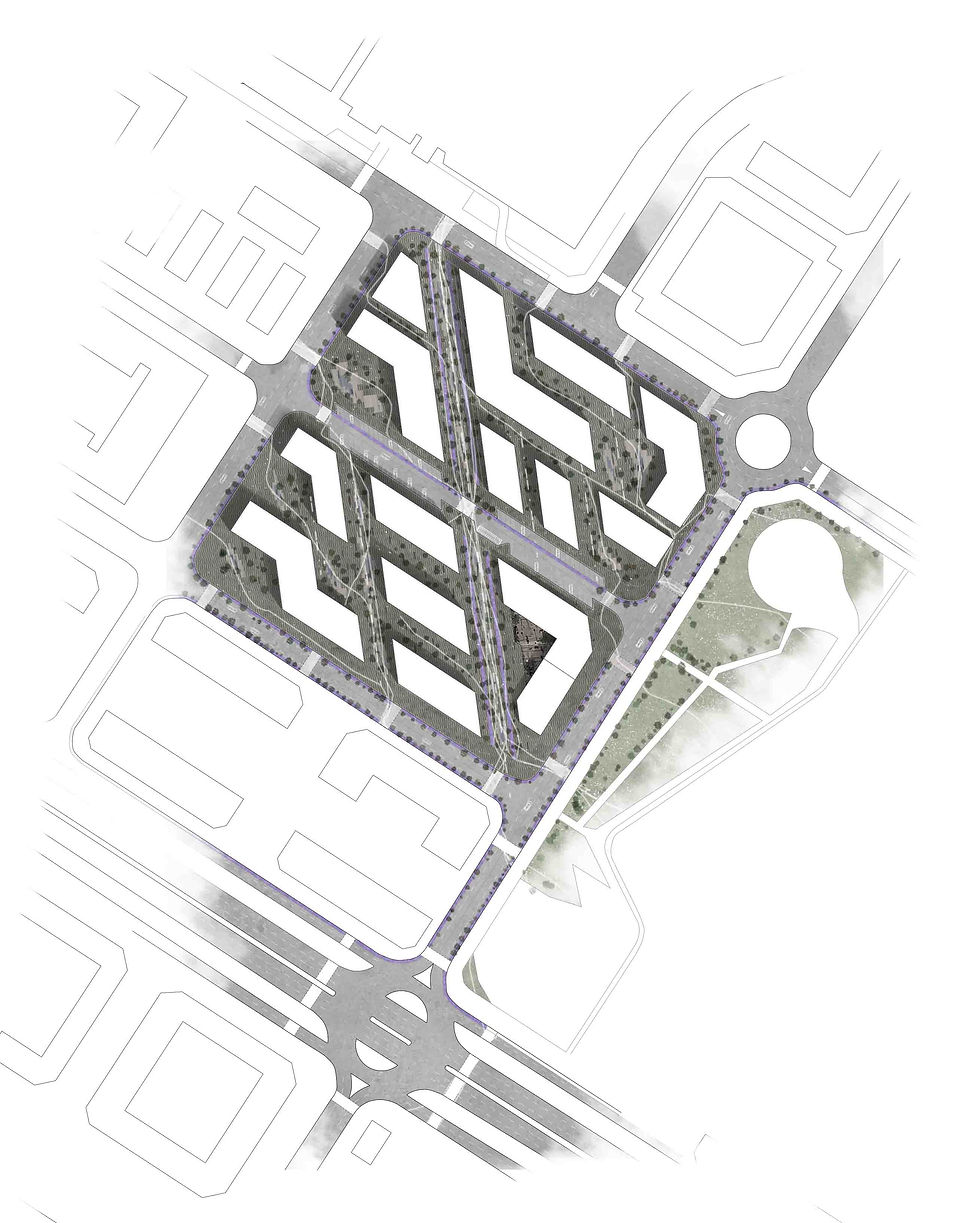

Focus Area Plan

1:2000 plan of proposed redevelopment of brownfield site

City of Children

Mapping the key facilities for children and the barriers affecting their mobility

Aerial View

Note metro station in bottom left hand position

Urban Tissue Analysis 1

Urban Tissue Analysis 2

Located within the failed extension of the 1997 Central Madrid urban plan, this project began with a masterplanning exercise for 17,000 new dwellings and culminated with a proposal for the redevelopment of a 6 hectare plot. Focussing on
sustainable mobility, I created a pedestrian axis within a geometrical urban fabric, linking key
facilities with the underused metro station .
