Torrelodones

3rd Year (Erasmus) urban design studio

Focus Area Plan

1:500 plan detailing proposed urban conditions, road usages and building typologies

Focus Area Section

1:500 Section showing building forms in relation to public space and transport networks

Neighbourhood Plan

100ha area including analysis for focus area

Urban Plan

1:2000 urban plan for the area, indicating land usages, building typologies and proposed transport systems

Transport Analysis Isometric

Multi-layer diagram mapping natural features with existing and proposed transport networks

Transport Link Diagram

Detailing type of connections and node

Building Typologies

Scale, storeys and usage

Facilities and open space

Municipality wide strategic map

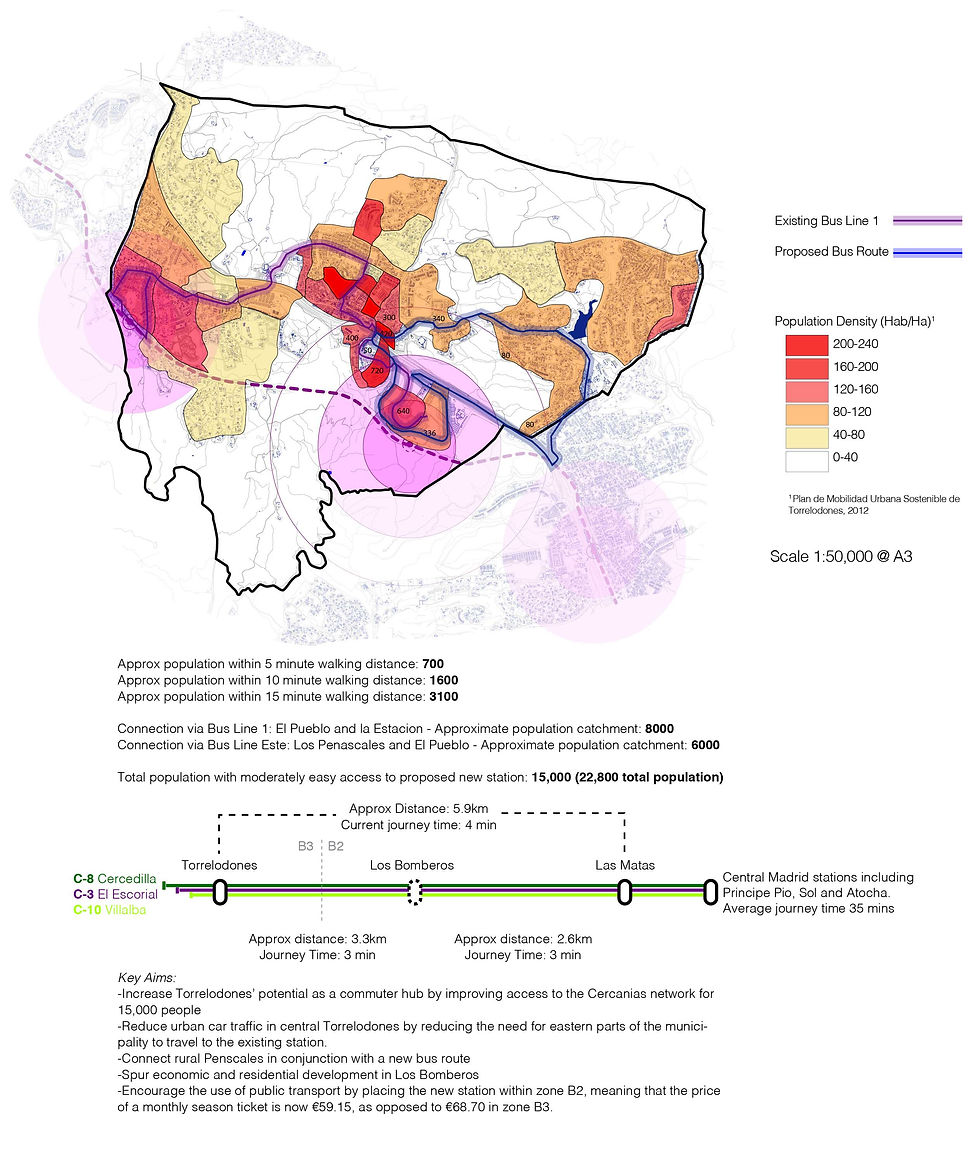

Transport Analysis Map

Analysing the coverage for a proposed new train station and public bus route

Following a number of analytical and strategical proposal exercises, the task for this studio was to redesign a brownfield area of a municipality
within the Madrid community. With a newly proposed train station acting as a catalyst for this area, the scheme included a number of mixed
use developments and green public spaces. Integrated thinking incorporating elements such as population, housing, environmental and socio-economonic factors was essential at all stages/scales during this project
